TK Reefer Genset
SG-3000 Series Generator Sets

For years, Thermo King has been leading the challenge of making more efficient, reliable units available to customers in the five continents.

Authorized

Thermo King

Dealer

SG-3000 Series Generator Sets

One Step Ahead of Genset Technology

The SG-3000 genset is the result of years of experience in designing and maintaining units for different climatic and operational conditions, and benefits from the most advanced technologies and a highly reliable design. This translates into a low emission, reliable source of electric power for refrigerated containers, no matter the ambient temperature or the load. The SG-3000 product range offers different mounting options for containers, whether they are stationary or travel by rail or road.

Efficiency: EcoPower™

Enhanced operation mode allows highly efficient engine management for dramatic fuel savings, low emissions and extremely accurate, load-independent voltage regulation.

Reliability

The result of years of experience on the ground and thoughtfully tested components supported by Advanced Diagnostic, Auto restart function, global positioning and fuel consumption monitoring capability.

Easy to Operate

User-friendly interface featuring a multi language, high resolution controller interface ensuring that the unit is operated properly, no matter where in the world.

Convenient

Extremely low fuel consumption and extended maintenance periods result consistently in lower life-cycle costs.

Flexibility

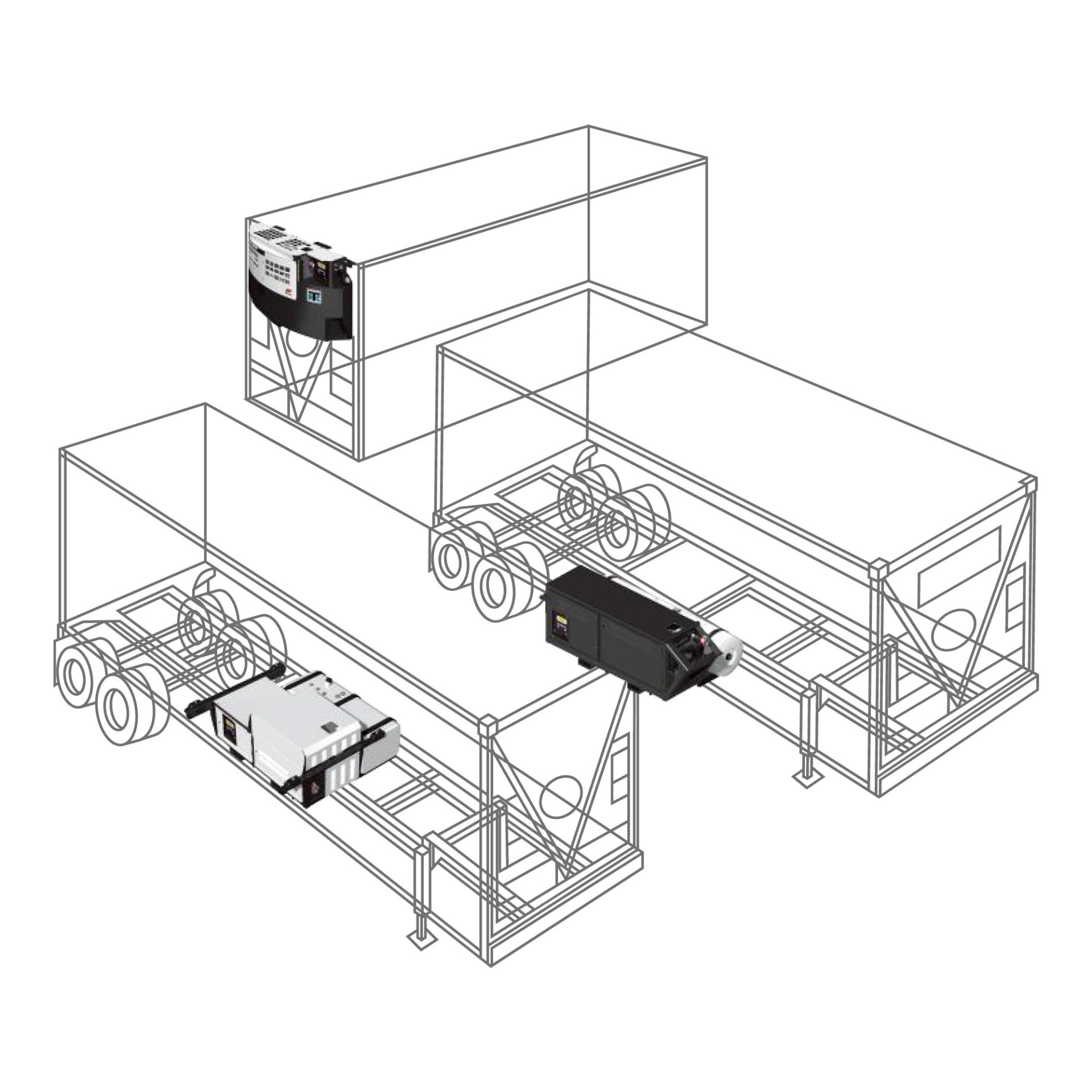

Specifically designed for reefer applications, available in 3 models for Clip-On, Center-Mount or Side-Mount.

Smarter Way to Power Reefer

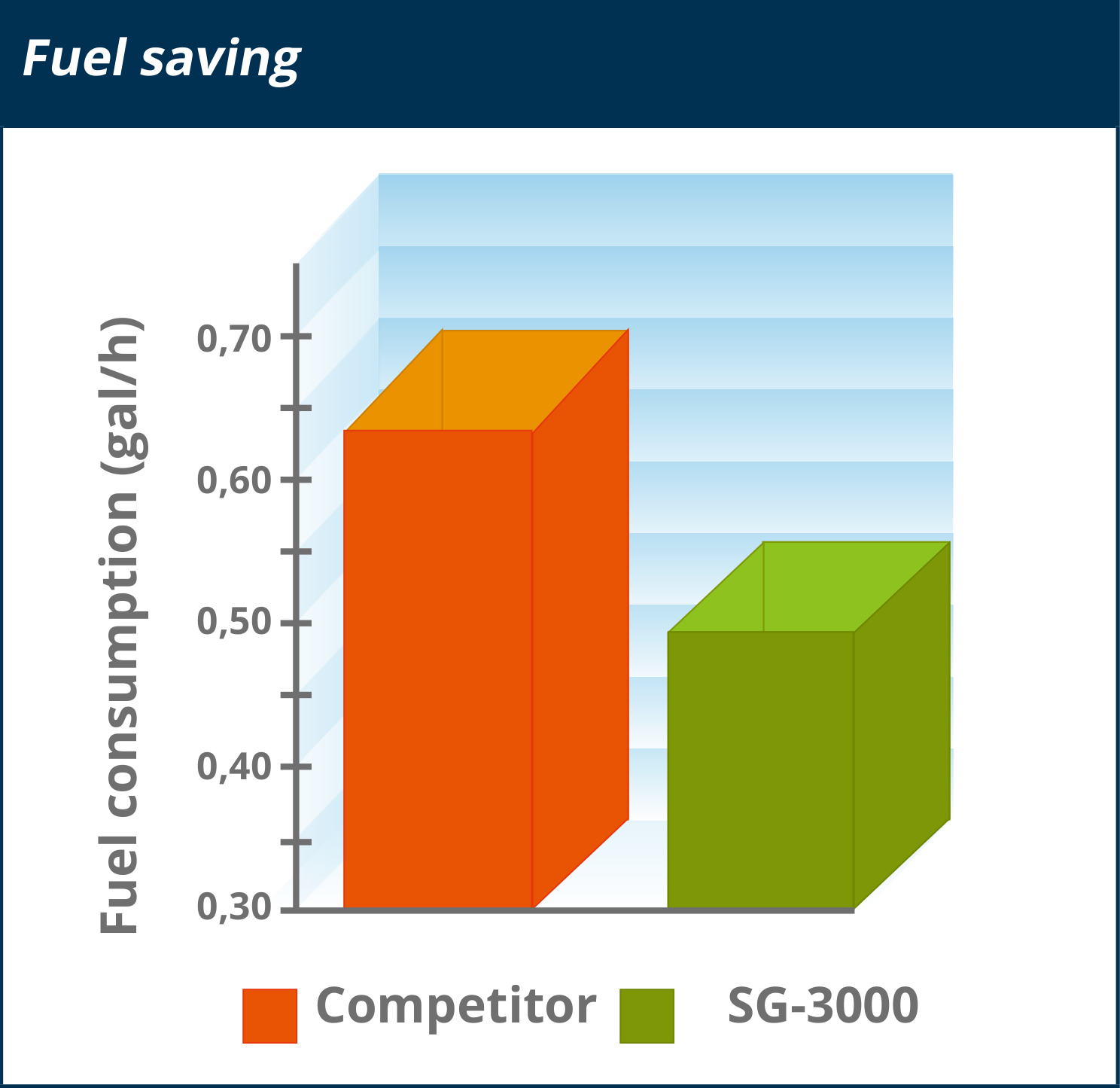

SG-3000 with EcoPowerTM option: the reference in Fuel saving

Hardware and software enhancements and Thermo King patented technology are at the foundation of the record performances of the SG-3000.

More than 20% fuel savings, when compared with competitors’ gensets today, using enhanced operation mode.

More Features

Our Genset Features

SG+: the Next Generation of Microprocessor Controllers

Improved Engine Management

Ability to operate genset at variable speeds for reduced fuel consumption and emissions.

Auto Restart Feature

Allows automatic re-start minimising cargo losses and providing maximum protection for the shipment.

Enchanced Connectivity

Simple interface to 3rd party telematics solutions enables connectivity and access to a range of telematics offerings.

Advanced Diagnostics

Simplified pre-trip components test function and advanced self-checking diagnostic capabilities, including manual function tests and assuring trouble-free operation.

User-friendly Interface

A 4-lines, clear display allows full-message text for clear and immediate understanding of the unit status, settings and alarm messages. Eliminates the need for acronyms and code tables while maintaining the same efficient menu structure of the previous model.

Dual Language Support

The extended memory and advanced menu system supports both English and Spanish. This not only applies to the alarms, but to the entire menu navigation process, making the SG+ the industry leading interface between a generator set and operator.

Fuel monitoring capability

Full download of the fuel level related data is available by connecting to the download port on the front of the control box. Keeps track of fuel consumption and detects abnormal situations.

Automatic Preheating of Engine & Delayed Voltage Output

Extends the life of the unit by ensuring proper operation prior to the full load being applied and prevents engine/alternator damage from coldstarting full reefer loads.

Find Your Fit

SG-3000: Product Range

underslung-side mount

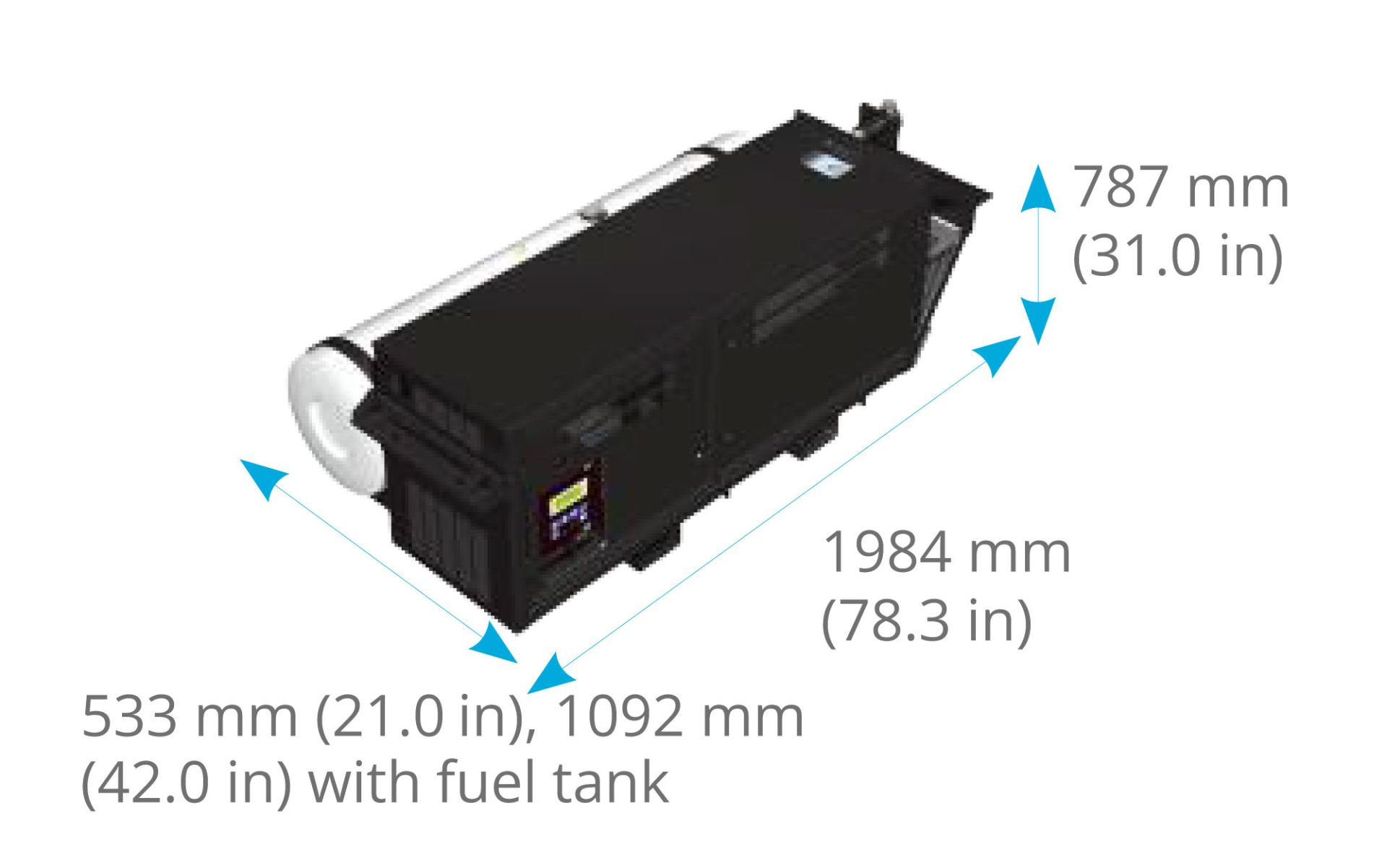

SGSM-3000

This model is designed for applications requiring under mounting on the side of a container chassis rather than in the centre. It includes a 75 gallon fuel tank and optional quick connect/ disconnect mounting arms to further simplify application.
Weight:
678 kg (1495 lbs) – Total Weight, including Gen Set, oil, coolant, dry fuel tank and battery
Enquire About Genset

clip it on, plug it on

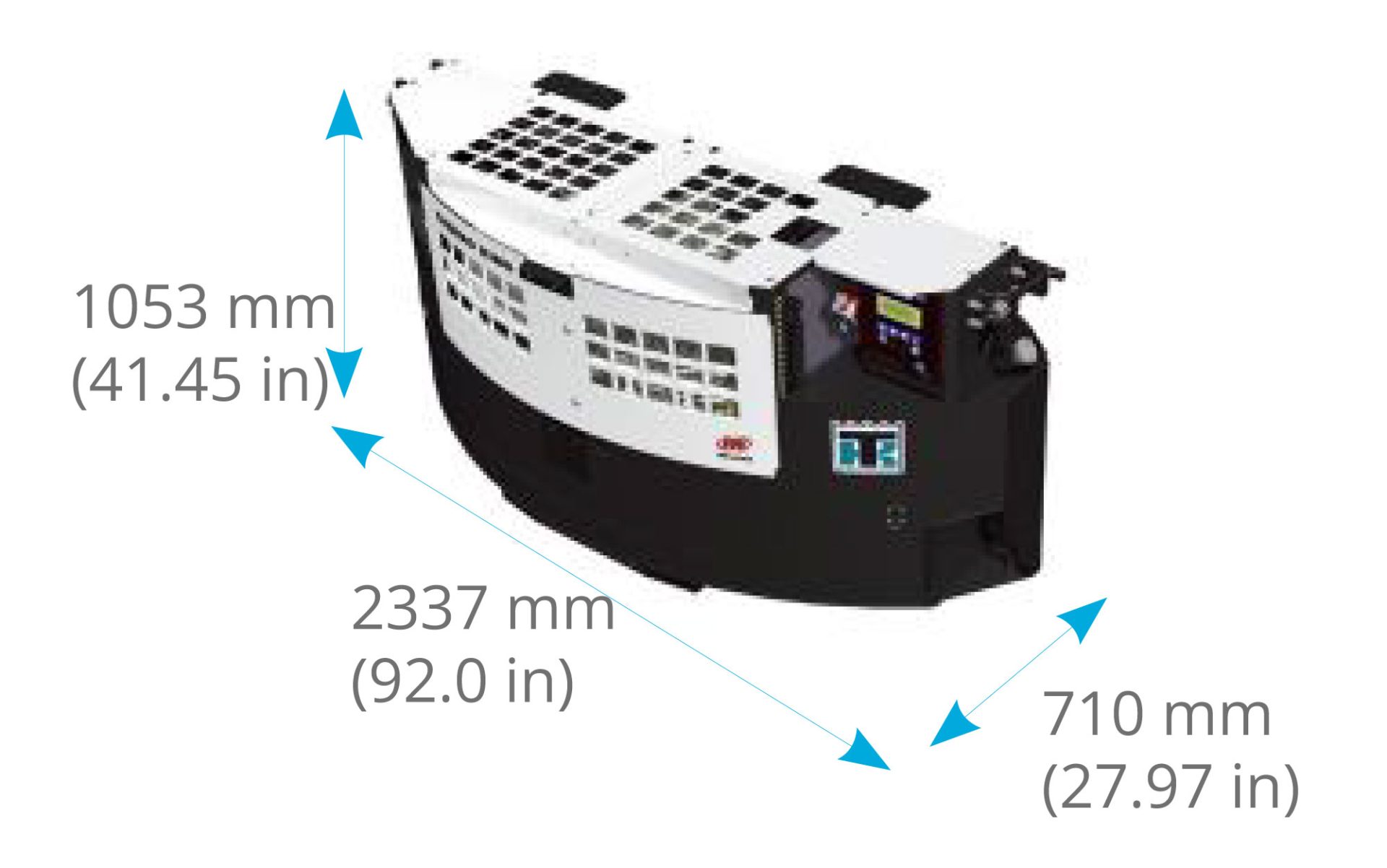

SGCO-3000

Streamlined dimensions and serviceability are key features of the aerodynamic clip-on gen-set. This fully self-contained unit mounts to the container’s corner castings with quickdisconnect fasteners or optional header pin mounting. It’s a power plant that can go anywhere the container goes and is ideal for railcar and double stacking. It includes a built-in 125 gallon “true draw” fuel tank.
Weight:
818 kg (1804 lbs) – Total Weight, including Gen Set, oil, coolant, dry fuel tank and battery. Genset to be provided with decal indicating gross weight inclusive of fuel.
Enquire About Genset

underslung-centre mount

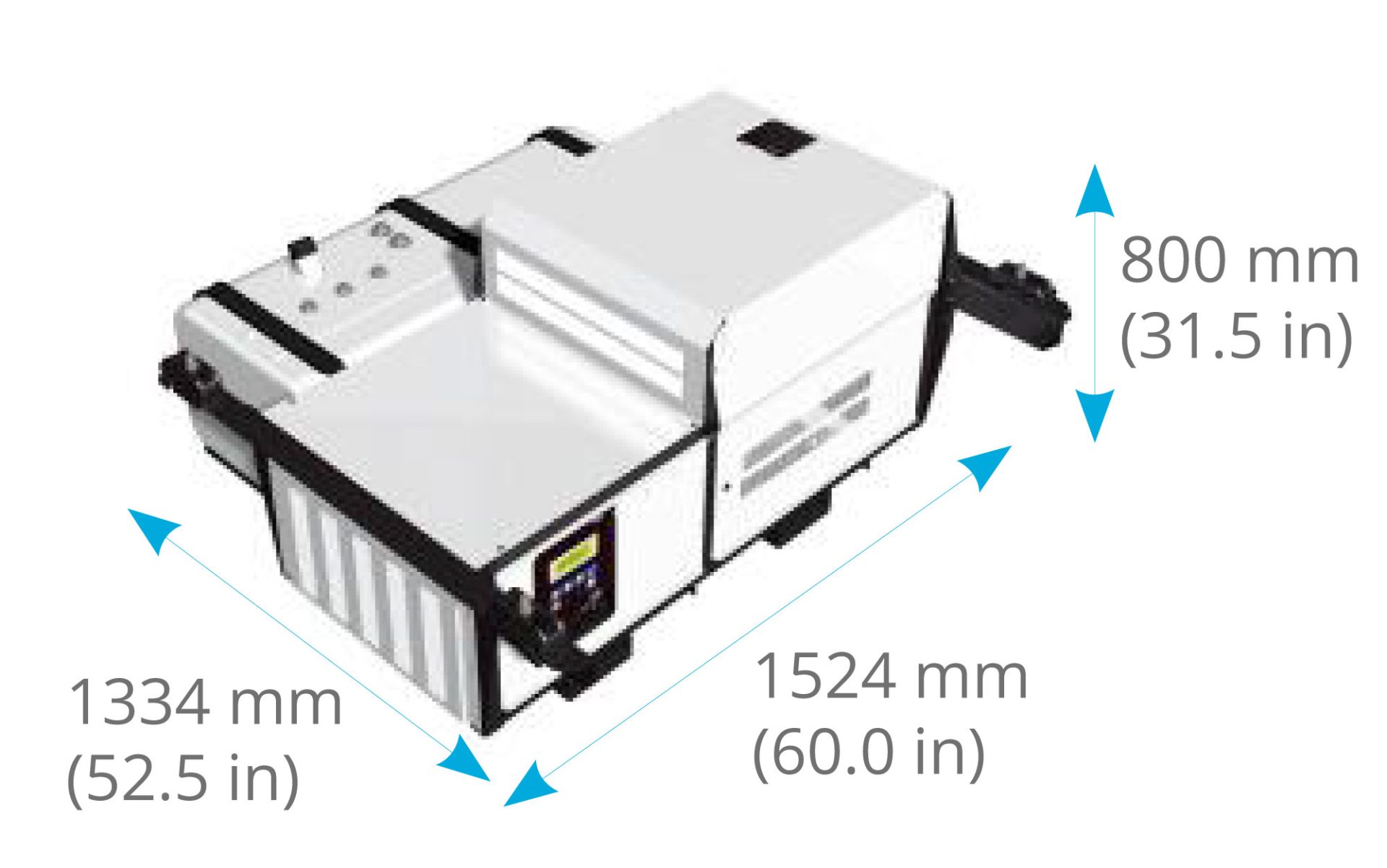

SGCM-3000

The centermount model mounts under the centre of the container chassis between the I-beams to allow for maximum road clearance and even weight distribution. Built-in quick disconnect mounting hardware allows it to be easily mounted and removed. It has an integral 80 gallon fuel tank.
Weight:
671 kg (1480 lbs) – Total Weight, including Gen Set, oil, coolant, dry fuel tank and battery. Genset to be provided with decal indicating gross weight inclusive of fuel.
Enquire About Genset

Our Genset Specifications

Reliable Source of Electric Power for Refrigerated Containers

SG-3000 SERIES GENERATOR SET
Engine
TK Diesel engine, mechanical direct injection, naturally aspirated with closed crankcase ventilation
Fuel Type
No.2 Diesel (under normal conditions)
No.1 Diesel (cold weather fuel)
Rotational speed
1890+/-10 RPM
1560 + 10-0 RPM
Generator
460/230 Vac, 3 Phase, 60Hz
Output Power
15 kW
Apparent Power
18.75 kVA
Rotational speed
1800 RPM
Electrical System
SG+ microprocessor controller
Battery
12V, 925 CCA at –18⁰C (0⁰F)
Fuel Tank
Included in all models
SG Clip-On
SG Centre-mount
SG Side-mount
125 gal (473 litres)
80 gal or 50 gal (302 litres or 198 litres)
75 gal (283 litres) Round steel tank
Specifications are subject to change
